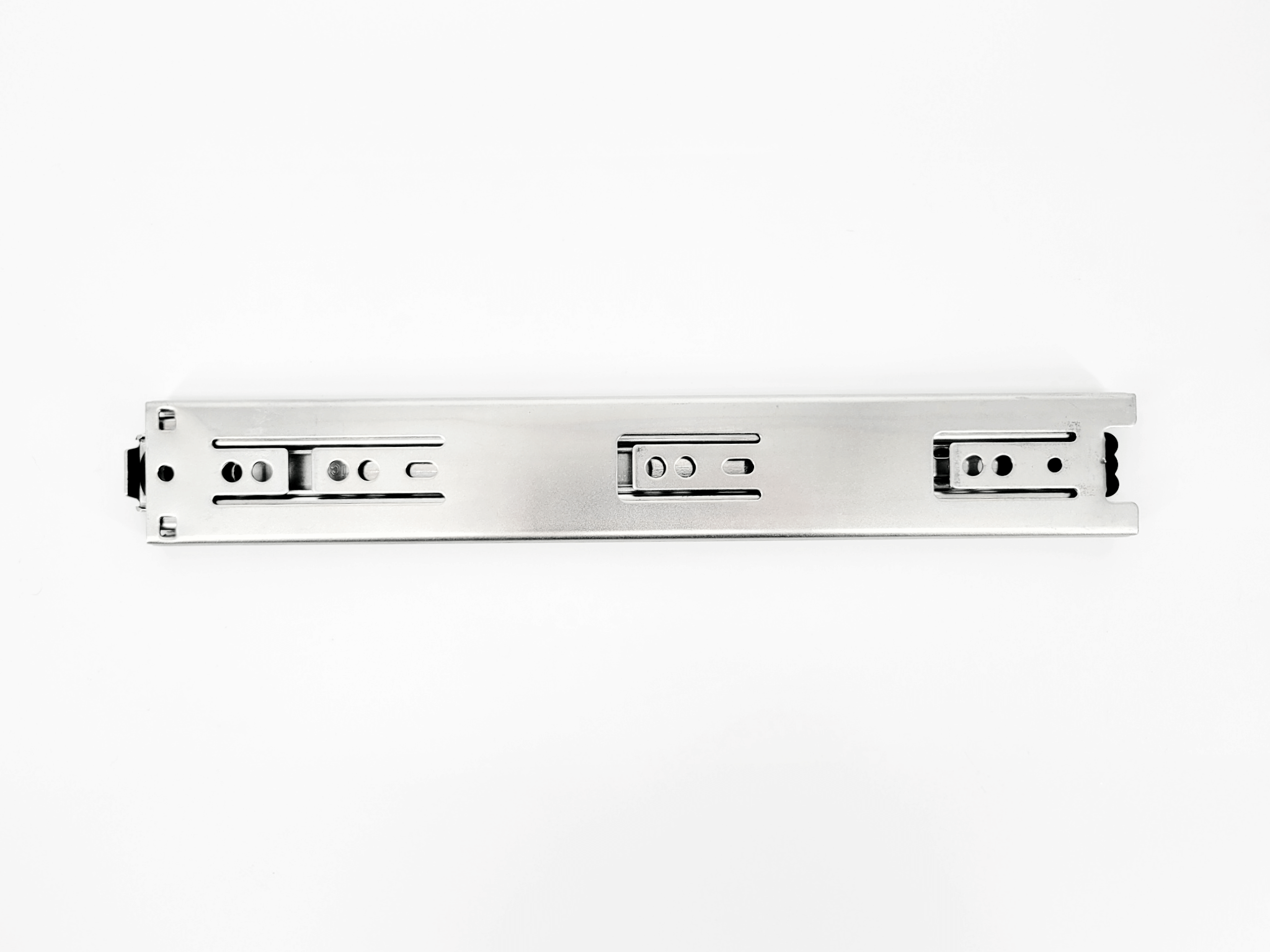

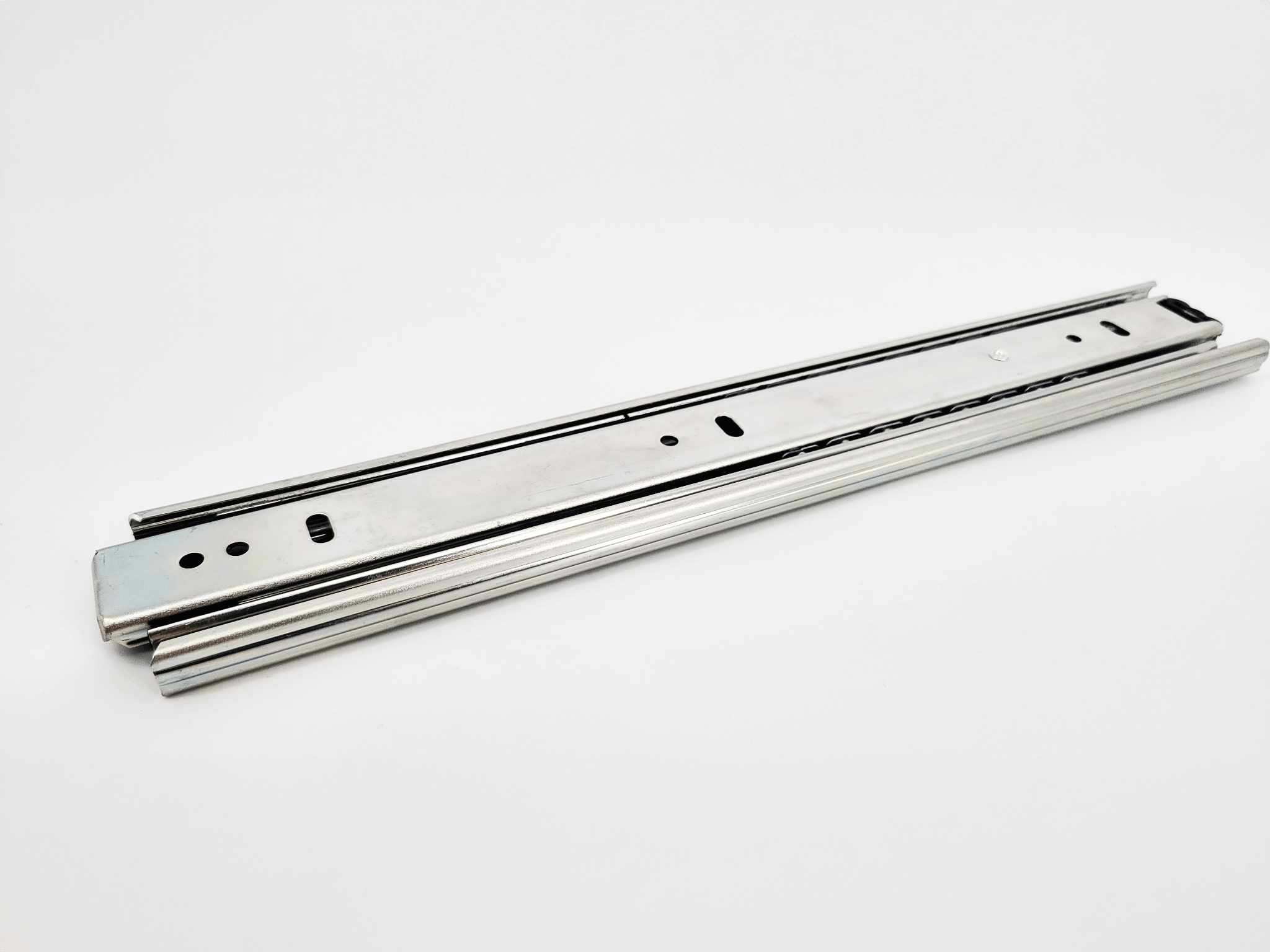

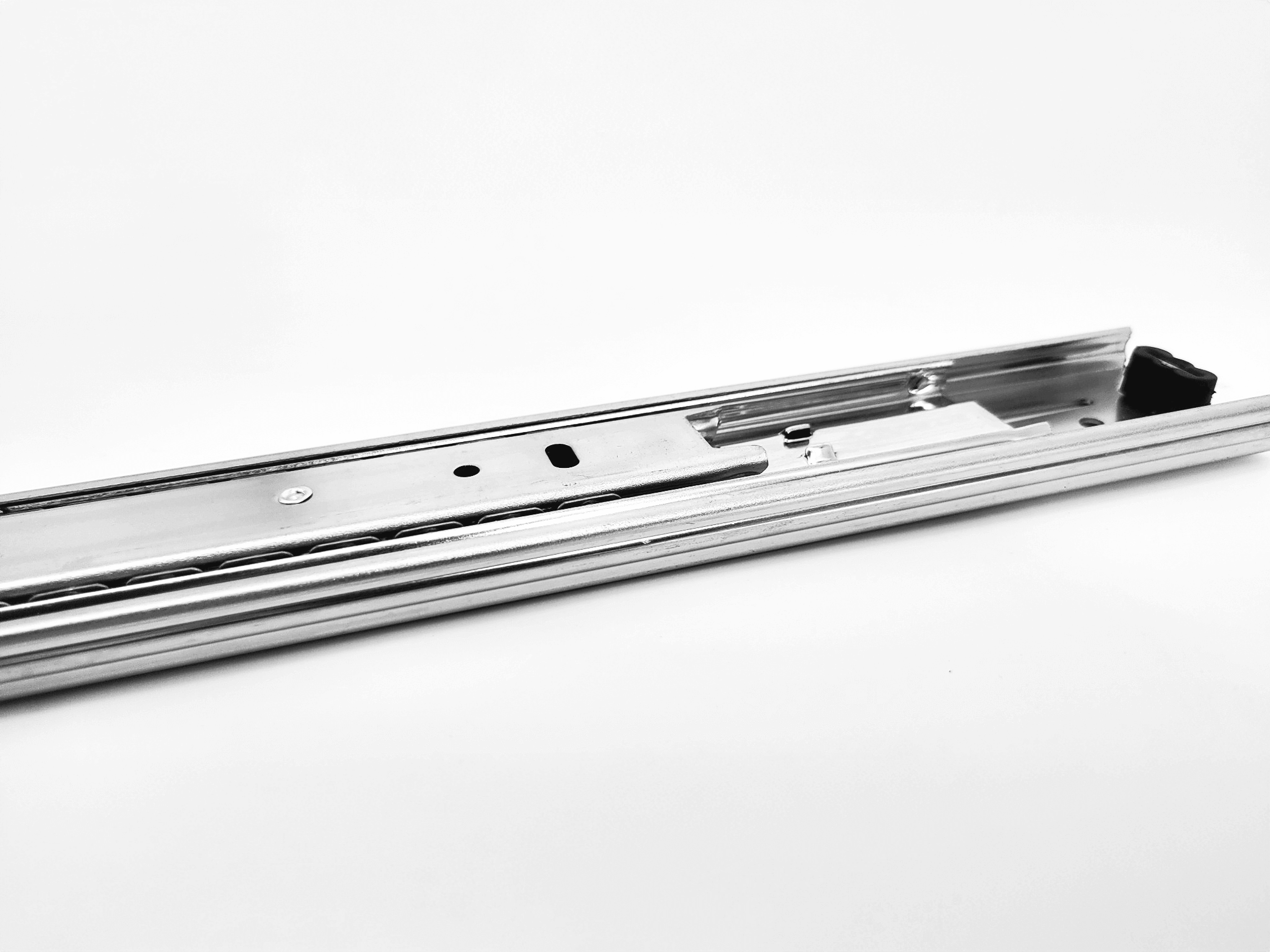

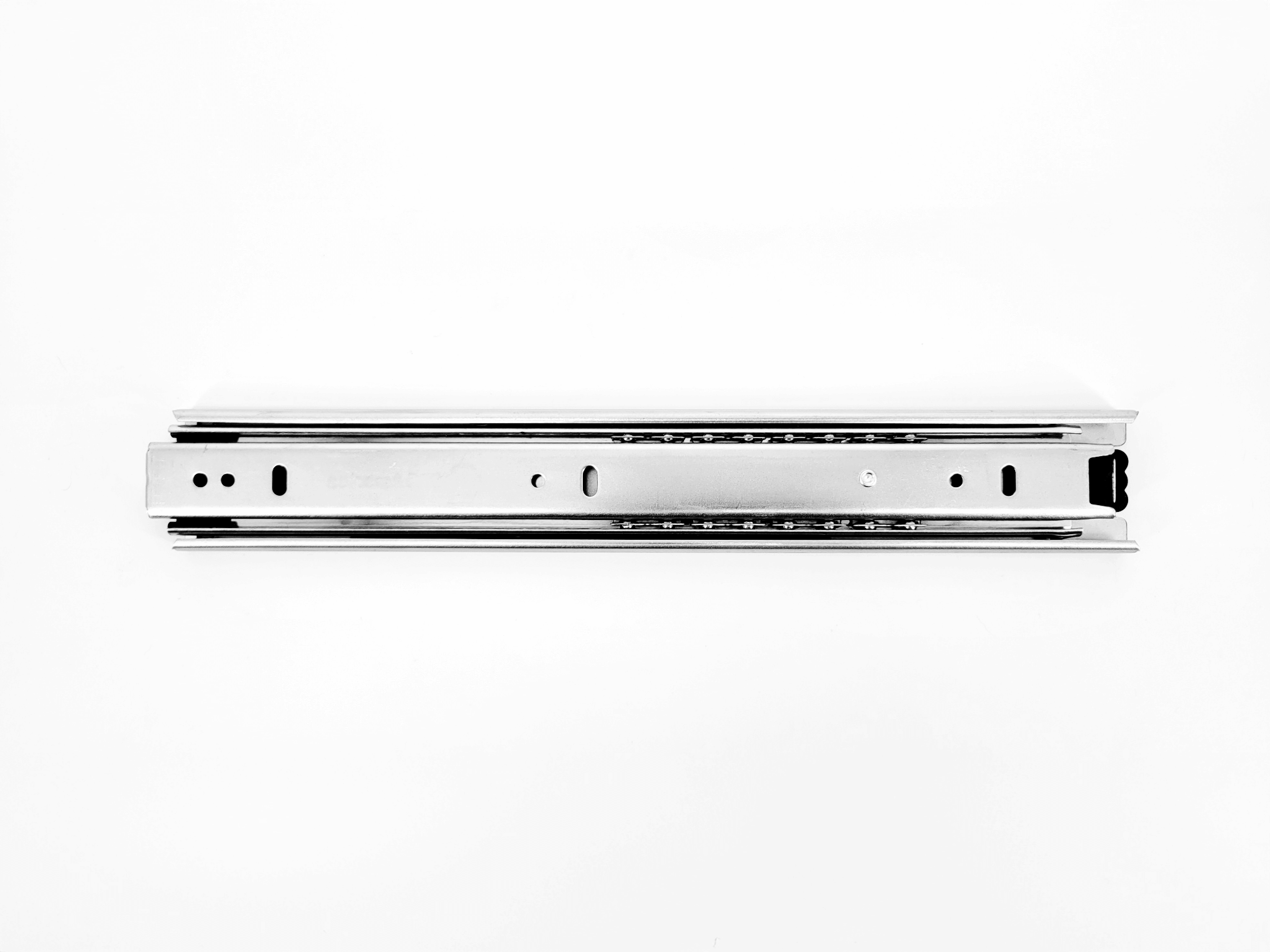

Standard Duty Ball Bearing
Grade 1 standard duty ball-bearing slides. Experience smooth, quiet closing that adds both functionality and durability to cabinets and drawers while meeting the highest industry safety standards.
SKU: 4511
Tested by KCMA, BIFMA, and BHMA for top-tier quality and durability.
WHY SiYi America: As a manufacturer, we deliver precision-engineered cabinet hardware with exceptional quality, reliable supply, and competitive value. We also offer customization options and responsive U.S.-based support to help you get solutions tailored to your exact needs.
- Material: Cold-rolled steel
- Finish: Zinc plating,
- Electrophoresis Black Treatment
- Load rating: 100 LB – 45KG (450mm as standard)
- Cycling: 50,000 times
- Thickness: 1.2mm x 1.2mm x 1.5mm
- Size range: 200mm – 700mm (8″ – 28″), customizable sizes are available
- Assembling: side mounting with screws
- Application: steel furniture, commercial and residential furniture, cabinets, etc.
| Product & Sales Description | SKU |
|---|---|
| 8" Ball Bearing Slide - Standard | 4511-200 |
| 10" Ball Bearing Slide - Standard | 4511-250 |
| 12" Ball Bearing Slide - Standard | 4511-300 |
| 14" Ball Bearing Slide - Standard | 4511-350 |
| 16" Ball Bearing Slide - Standard | 4511-400 |
| 18" Ball Bearing Slide - Standard | 4511-450 |
| 20" Ball Bearing Slide - Standard | 4511-500 |
| 22" Ball Bearing Slide - Standard | 4511-550 |
| 24" Ball Bearing Slide - Standard | 4511-600 |
| 26" Ball Bearing Slide - Standard | 4511-650 |
| 28" Ball Bearing Slide - Standard | 4511-700 |
| Ball Bearing Slides - P2 Series: 18" Ball Bearing Slide - Only Cabinet Member - Standard | 4511CM-450 |
| Ball Bearing Slides - P2 Series: 20" Ball Bearing Slide - Only Cabinet Member - Standard | 4511CM-500 |
| Ball Bearing Slides - P2 Series: 22" Ball Bearing Slide - Only Cabinet Member - Standard | 4511CM-550 |
| Ball Bearing Slides - P2 Series: 18" Ball Bearing Slide - Only Drawer Member - Standard | 4511DM-450 |
| Ball Bearing Slides - P2 Series: 20" Ball Bearing Slide - Only Drawer Member - Standard | 4511DM-500 |
| Ball Bearing Slides - P2 Series: 22" Ball Bearing Slide - Only Drawer Member - Standard | 4511DM-550 |
