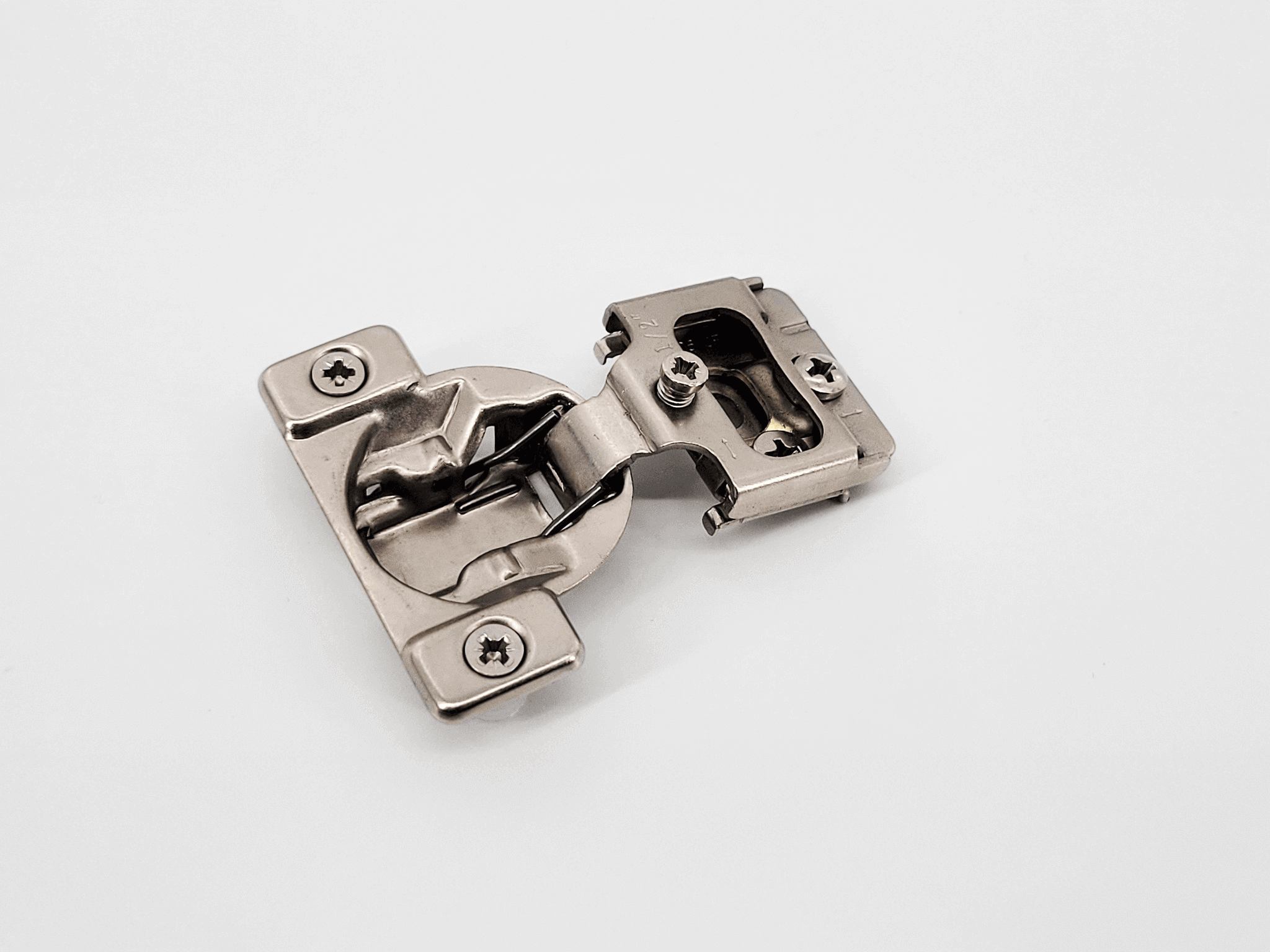

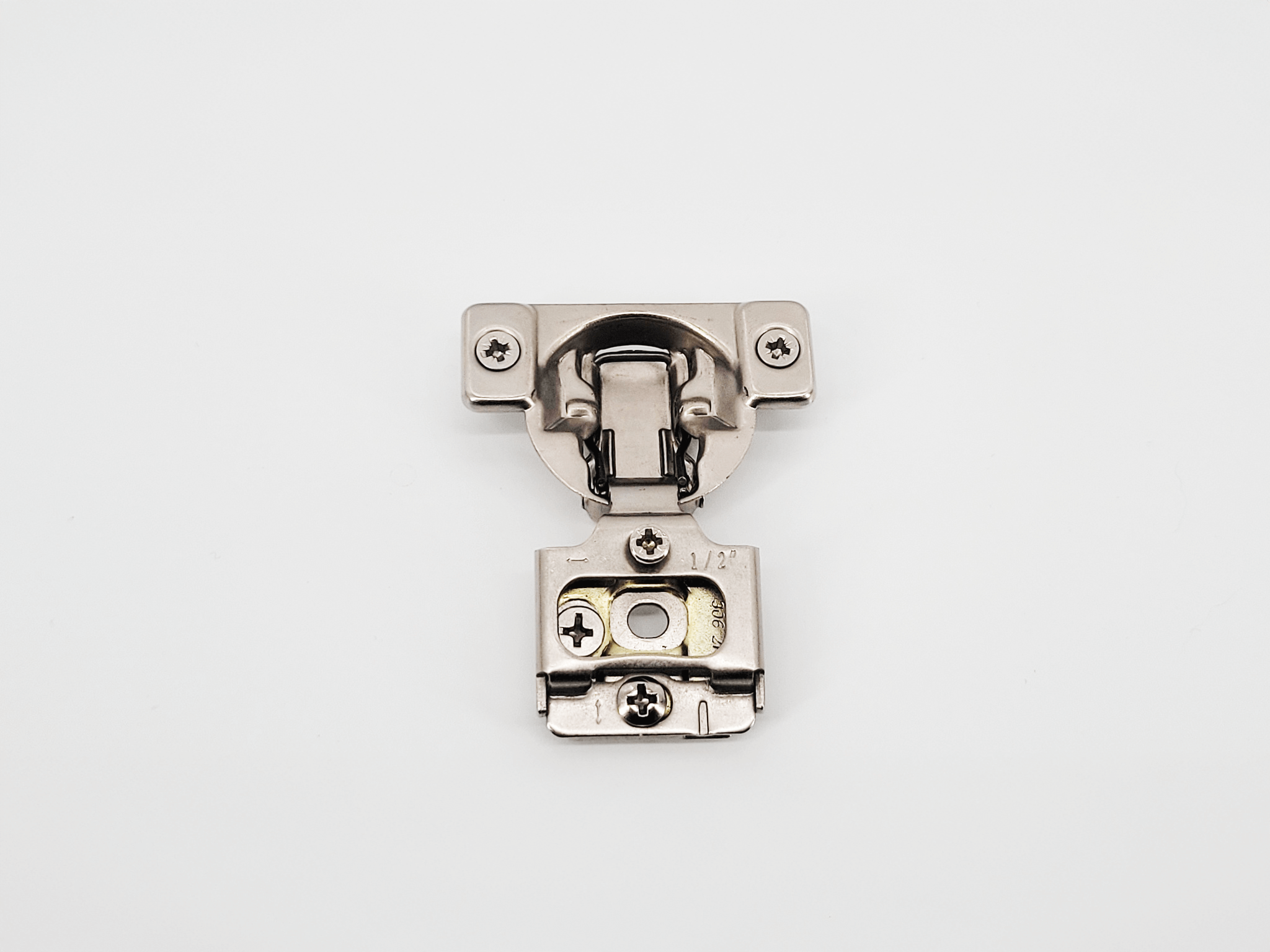

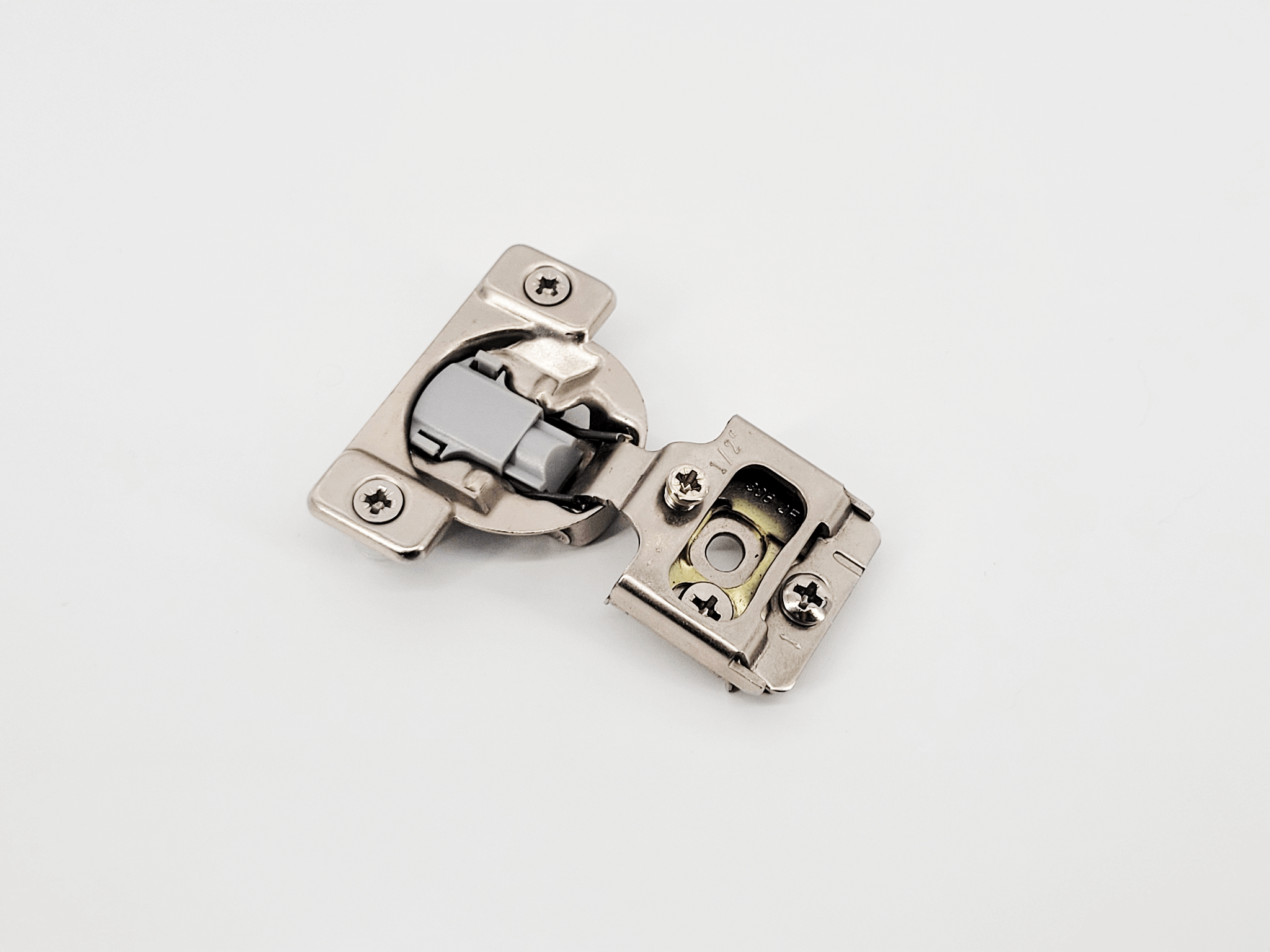

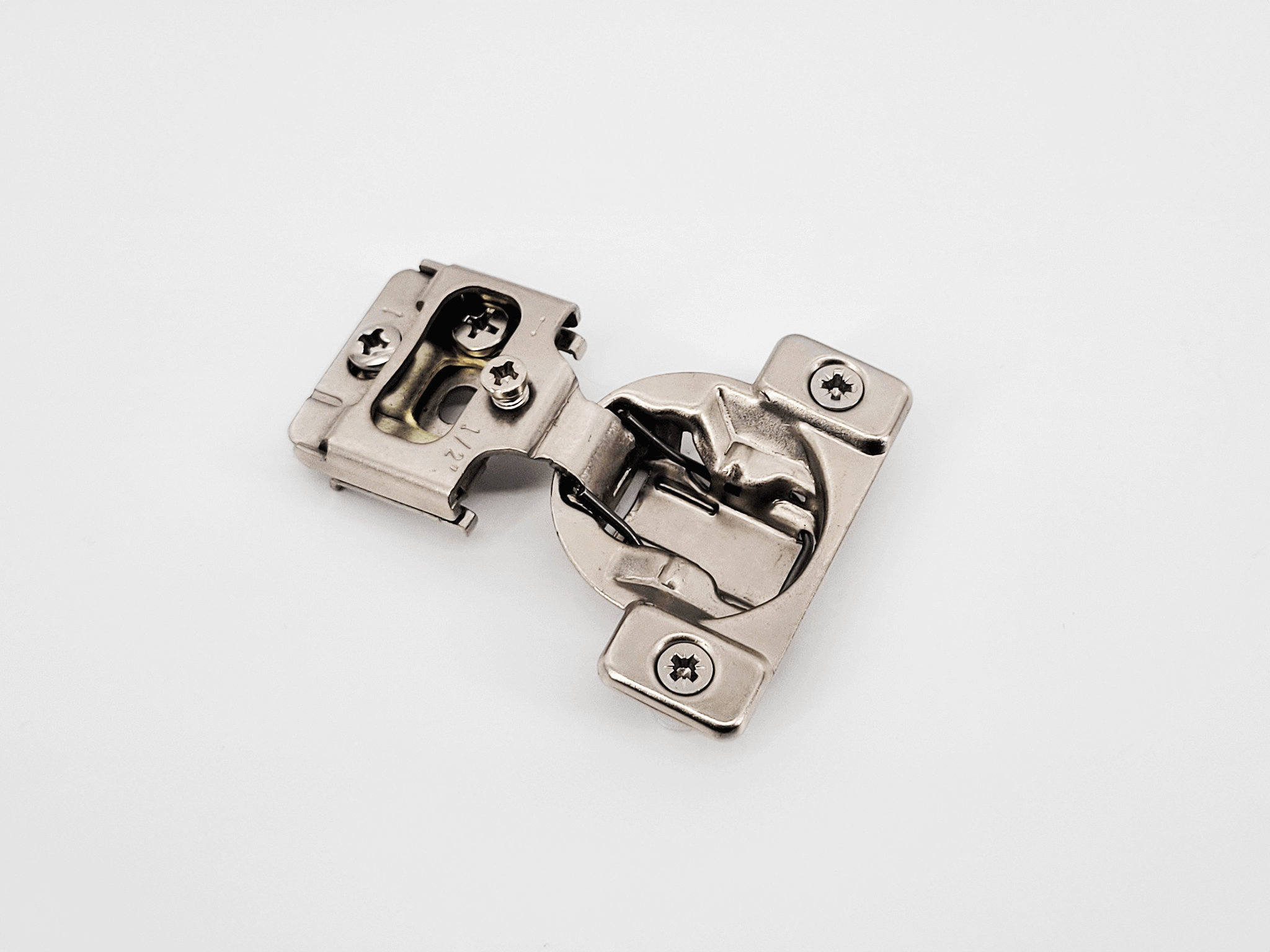

3D Compact Hinge
Transform your face frame cabinets with our Compact 3D Hinges. These hinges are a perfect choice for modern cabinetry projects that demand quiet functionality and space-saving design.
SKU: SY301 | SY301R
Built with precision engineering, these hinges ensure smooth and silent cabinet closure – reducing noise, minimizing wear and tear, and enhancing the overall user experience.
Tested by KCMA, BIFMA, and BHMA for top-tier quality and durability.
WHY SiYi America: As a manufacturer, we deliver precision-engineered cabinet hardware with exceptional quality, reliable supply, and competitive value. We also offer customization options and responsive U.S.-based support to help you get solutions tailored to your exact needs.
- Opening angle: 105
- Closing type: Soft Close / Regular Close
- Application: Frameless
- Diameter of hinge cup: 35mm
- Height of hinge cup: 10.5mm
- Boring distance range: 2.5mm
- Distance of cup holes centers: 45mm
- Door thickness: 14-21mm
- Finishing: Nickel-plated
- Main material: Cold-rolled steel
- Material thickness: 0.8 – 1.2-1.2mm
| Product & Sales Description | SKU |
|---|---|
| Compact Soft Close 3D Hinge, Press-in dowels (1 1/4" Overlay) | SY301-114D |
| Compact Soft Close 3D Hinge, Press-in dowels (1 3/8" Overlay) | SY301-138D |
| Compact Soft Close 3D Hinge, Press-in dowels (1" Overlay) | SY301-100D |
| Compact Soft Close 3D Hinge, Press-in dowels (3/4" Overlay) | SY301-34D |
| Compact Soft Close 3D Hinge, Press-in dowels (3/8" Overlay) | SY301-38D |
| Compact Soft Close 3D Hinge, Press-in dowels (1/2" Overlay) | SY301-12D |
| Compact Soft Close 3D Hinge, Screw On (1 1/4" Overlay) | SY301-114 |
| Compact Soft Close 3D Hinge, Screw On (1/2" Overlay) | SY301-12 |

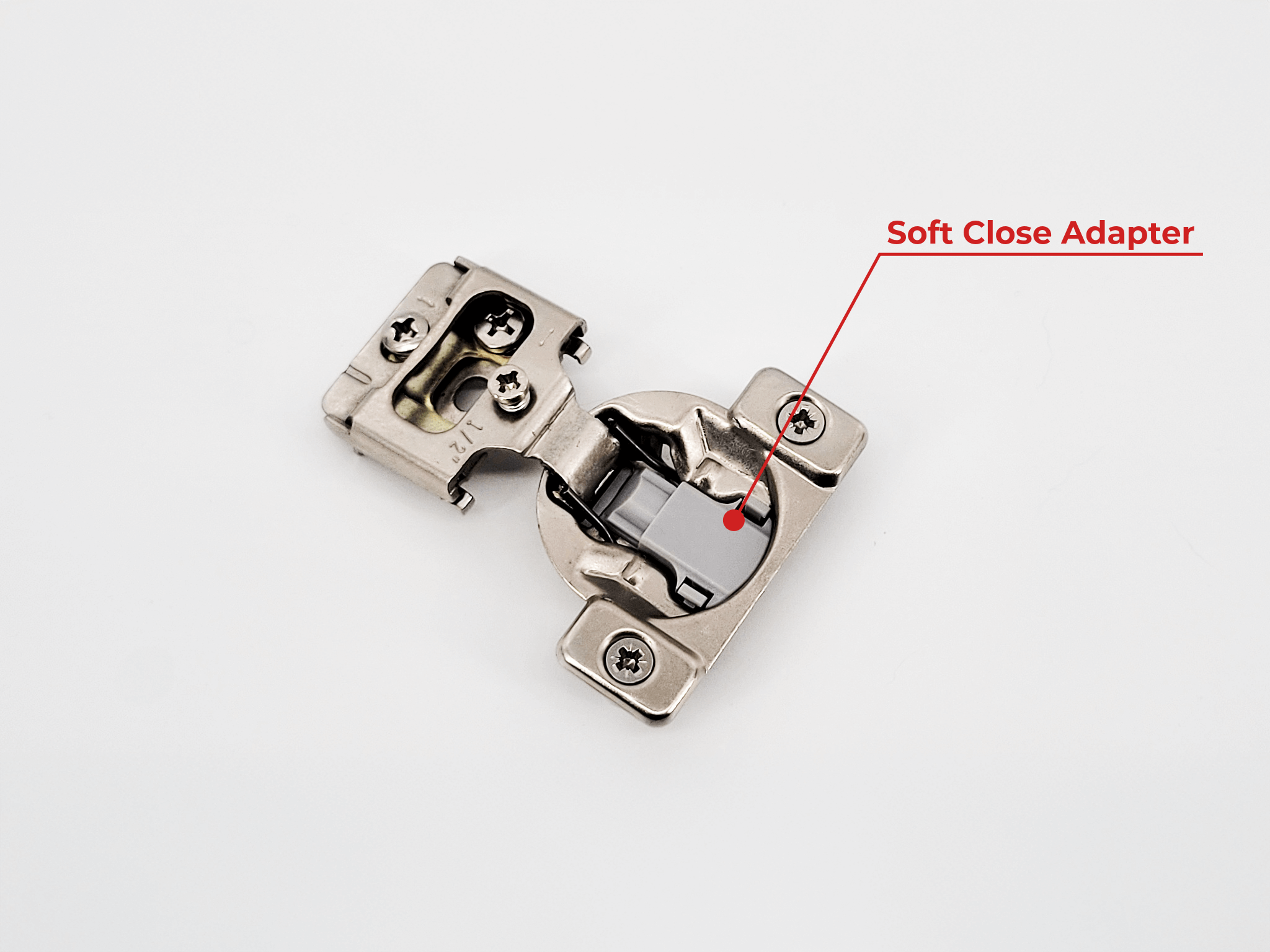

| Compact Hinge - SY301 Series: Soft Close Adapter | SY301-SCAD |
| Product & Sales Description | SKU |
|---|---|
| Compact Hinge - SY301 Series: Regular Close, 1" Overlay, 3D Hinge, With Dowel | SY301R-100D |
| Compact Hinge - SY301 Series: Regular Close, 1 1/2" Overlay, 3D Hinge, With Dowel | SY301R-112D |
| Compact Hinge - SY301 Series: Regular Close, 1 1/4" Overlay, 3D Hinge, Screw On | SY301R-114 |
| Compact Hinge - SY301 Series: Regular Close, 1 1/4" Overlay, 3D Hinge, With Dowel | SY301R-114D |
| Compact Hinge - SY301 Series: Regular Close, 1/2" Overlay, 3D Hinge, Screw On | SY301R-12 |
| Compact Hinge - SY301 Series: Regular Close, 1/2" Overlay, 3D Hinge, With Dowel | SY301R-12D |
