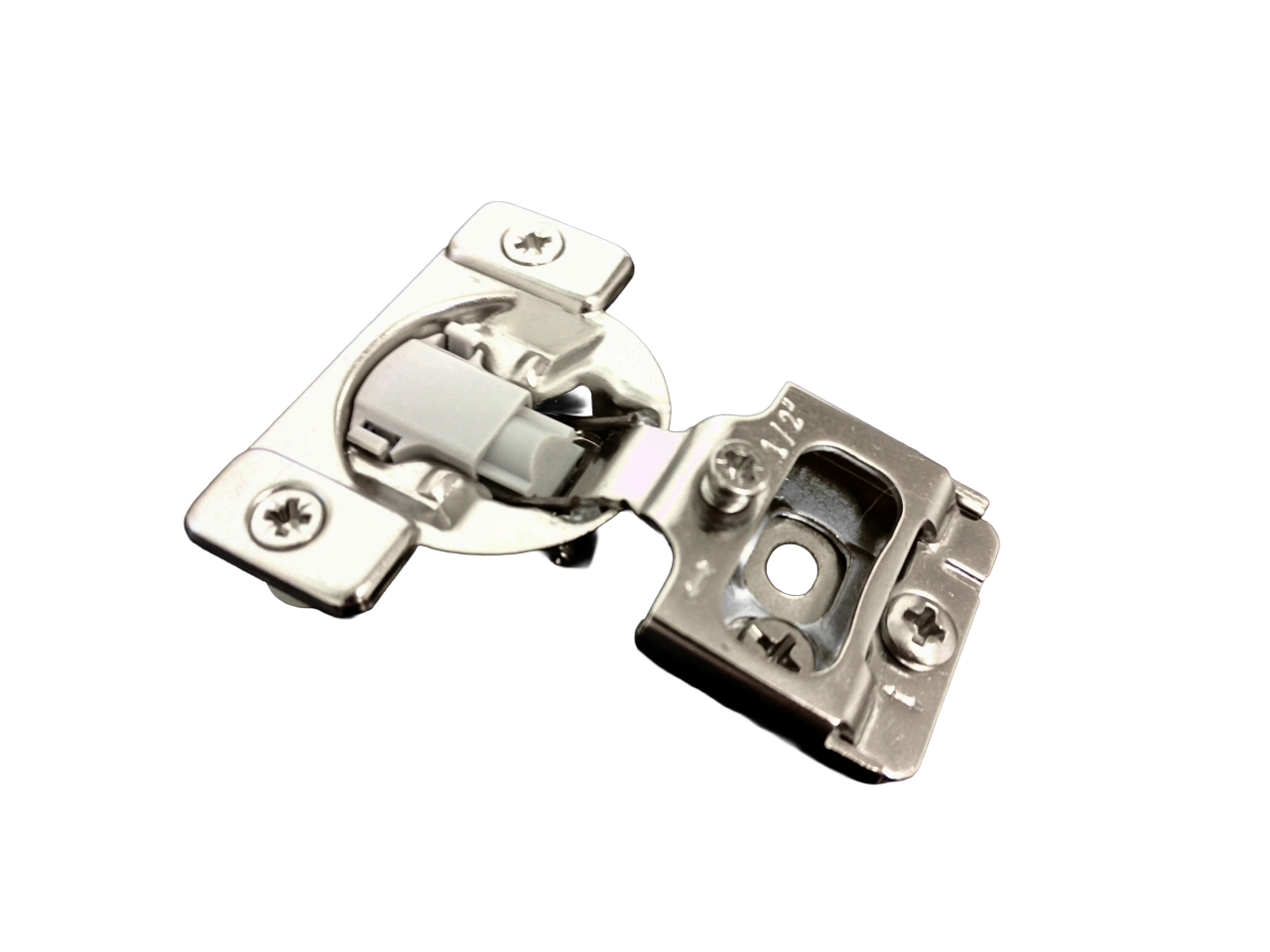

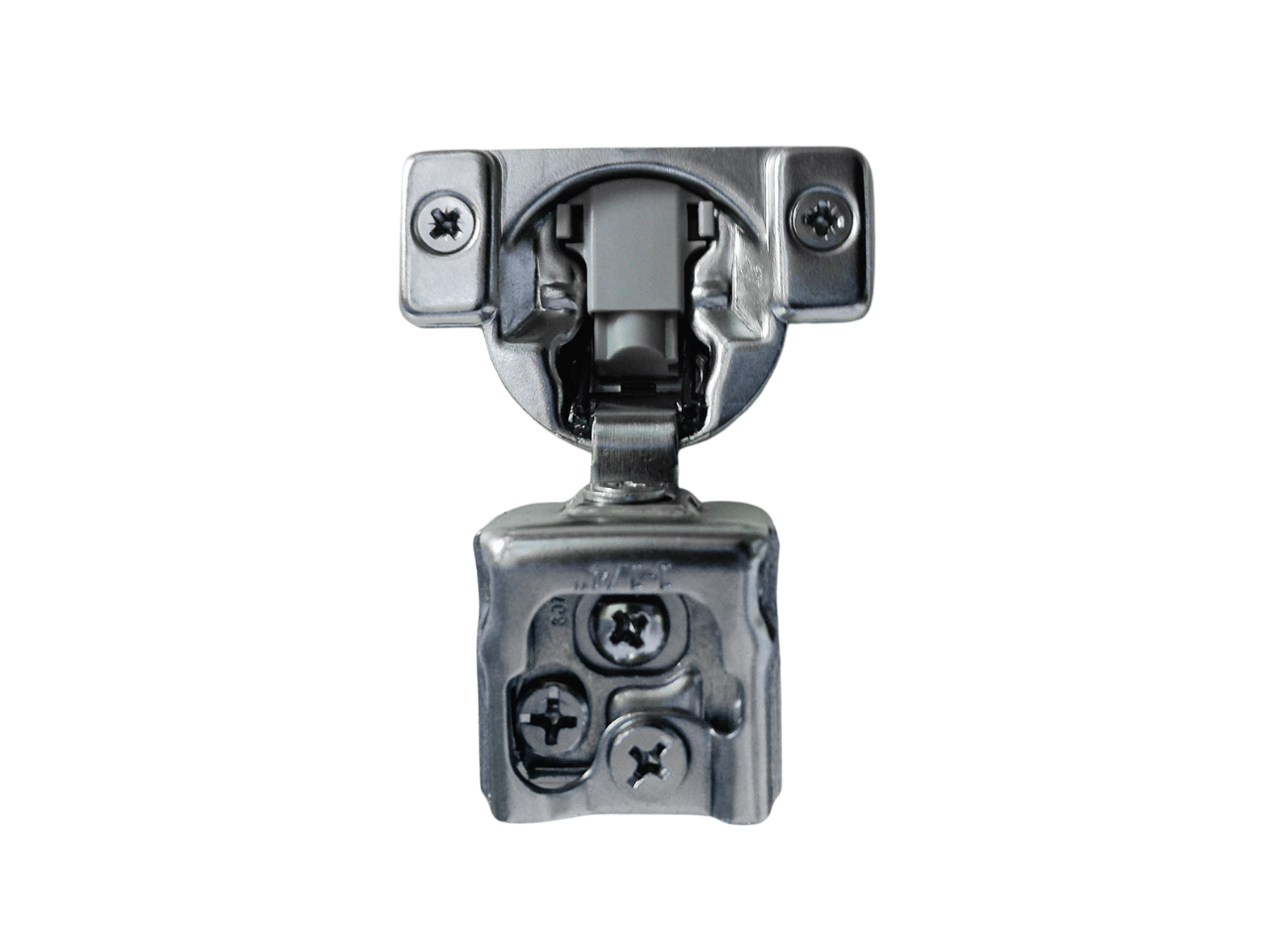

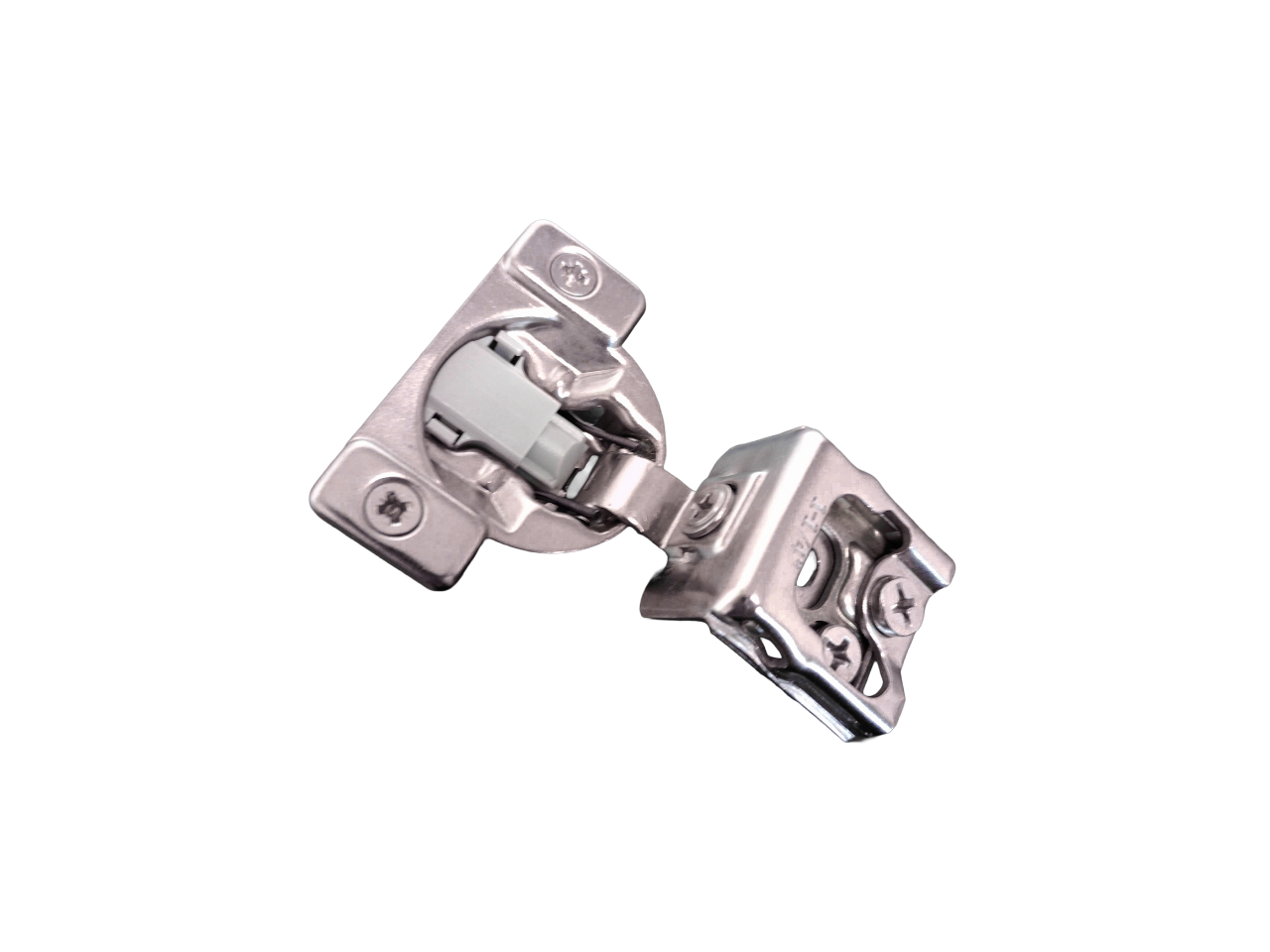

Compact Hinge
Transform your face frame cabinets with our Compact 3D Hinges.
These hinges are a perfect choice for modern cabinetry projects that demand quiet functionality and space-saving design. Whether you’re working on a kitchen renovation, bathroom vanity, or custom storage solution, our hinges help deliver a premium feel with minimal effort.

SKU: SY301 / SY301R

Their compact size and one-piece construction make them ideal for face frame applications where space is limited but quality can’t be compromised.

Built with precision engineering, these hinges ensure smooth and silent cabinet closure — reducing noise, minimizing wear and tear, and enhancing the overall user experience. These hinges provide a gentle, controlled shut every time, adding a touch of sophistication to even the simplest cabinet doors.

Opening angleClosing typeApplicationDiameter of hinge cup
105°Soft close/Self closeFace Frame35mm
Boring distance rangeDistance of cup holes centersDoor thicknessFinishing
2.5mm45mm14-21mmNickel plated
Height of hinge cupMaterial ThicknessMain material
10.5mm0.8-1.2-1.2mmCold-rolled steel
Technical Sheet
Product & Sales DescriptionSKU
Compact Soft Close 3D Hinge, Press-in dowels (1 1/4" Overlay)SY301-114D
Compact Soft Close 3D Hinge, Press-in dowels (1 3/8" Overlay)SY301-138D
Compact Soft Close 3D Hinge, Press-in dowels (1" Overlay)SY301-100D
Compact Soft Close 3D Hinge, Press-in dowels (3/4" Overlay)SY301-34D
Compact Soft Close 3D Hinge, Press-in dowels (3/8" Overlay)SY301-38D
Compact Soft Close 3D Hinge, Press-in dowels (1/2" Overlay)SY301-12D
Compact Soft Close 3D Hinge, Screw On (1 1/4" Overlay)SY301-114
Compact Soft Close 3D Hinge, Screw On (1/2" Overlay)SY301-12
Compact Hinge - SY301 Series: Soft Close AdapterSY301-SCAD
Technical Sheet
Product & Sales DescriptionSKU
Compact Hinge - SY301 Series: Regular Close, 1" Overlay, 3D Hinge, With Dowel SY301R-100D
Compact Hinge - SY301 Series: Regular Close, 1 1/2" Overlay, 3D Hinge, With Dowel SY301R-112D
Compact Hinge - SY301 Series: Regular Close, 1 1/4" Overlay, 3D Hinge, Screw On SY301R-114
Compact Hinge - SY301 Series: Regular Close, 1 1/4" Overlay, 3D Hinge, With Dowel SY301R-114D
Compact Hinge - SY301 Series: Regular Close, 1/2" Overlay, 3D Hinge, Screw On SY301R-12
Compact Hinge - SY301 Series: Regular Close, 1/2" Overlay, 3D Hinge, With Dowel SY301R-12D
Technical Sheet

Designed to elevate every detail of your project with unmatched durability

Engineered to support modern cabinetry with purpose-built controlbalancesilence
