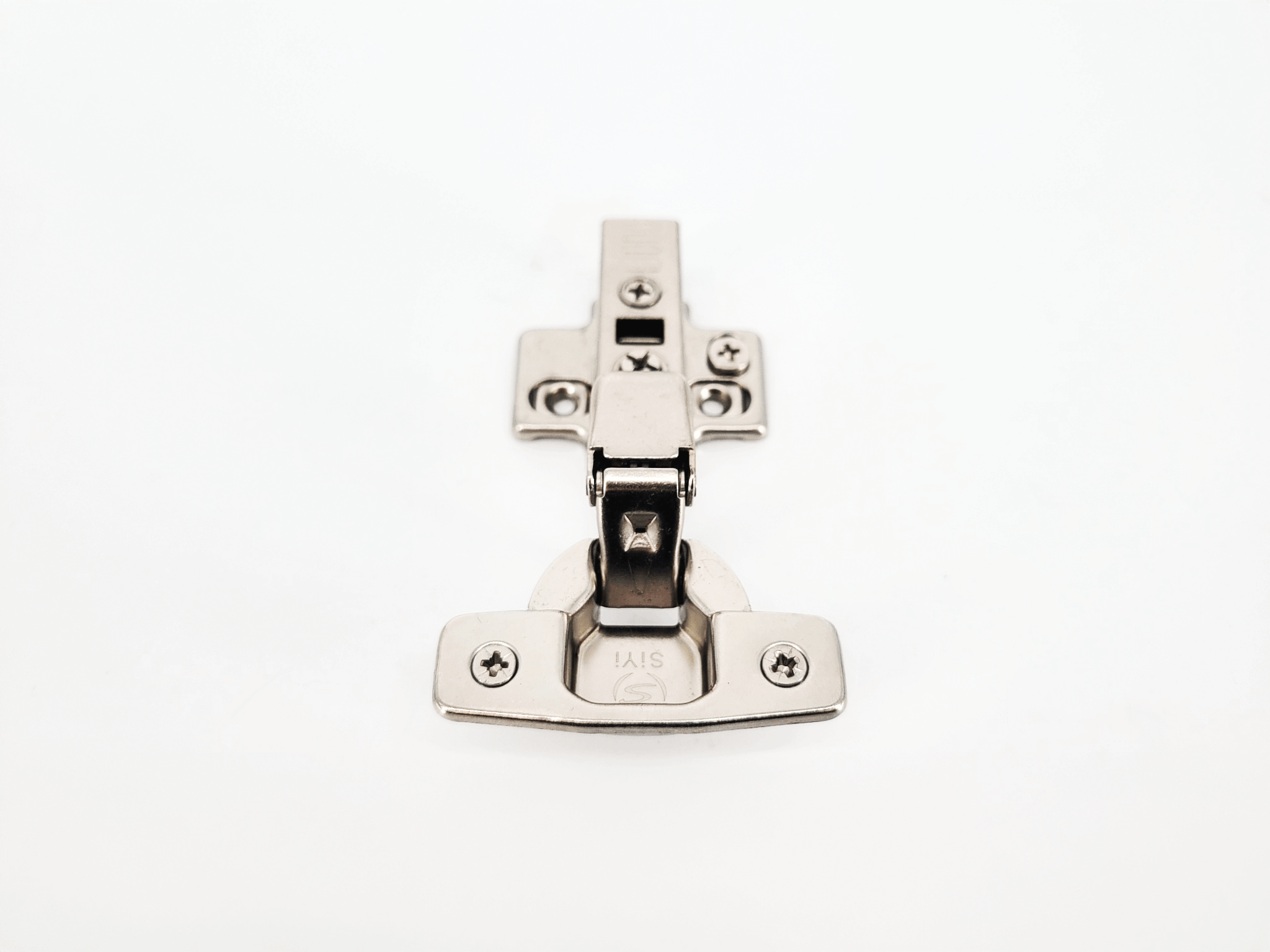

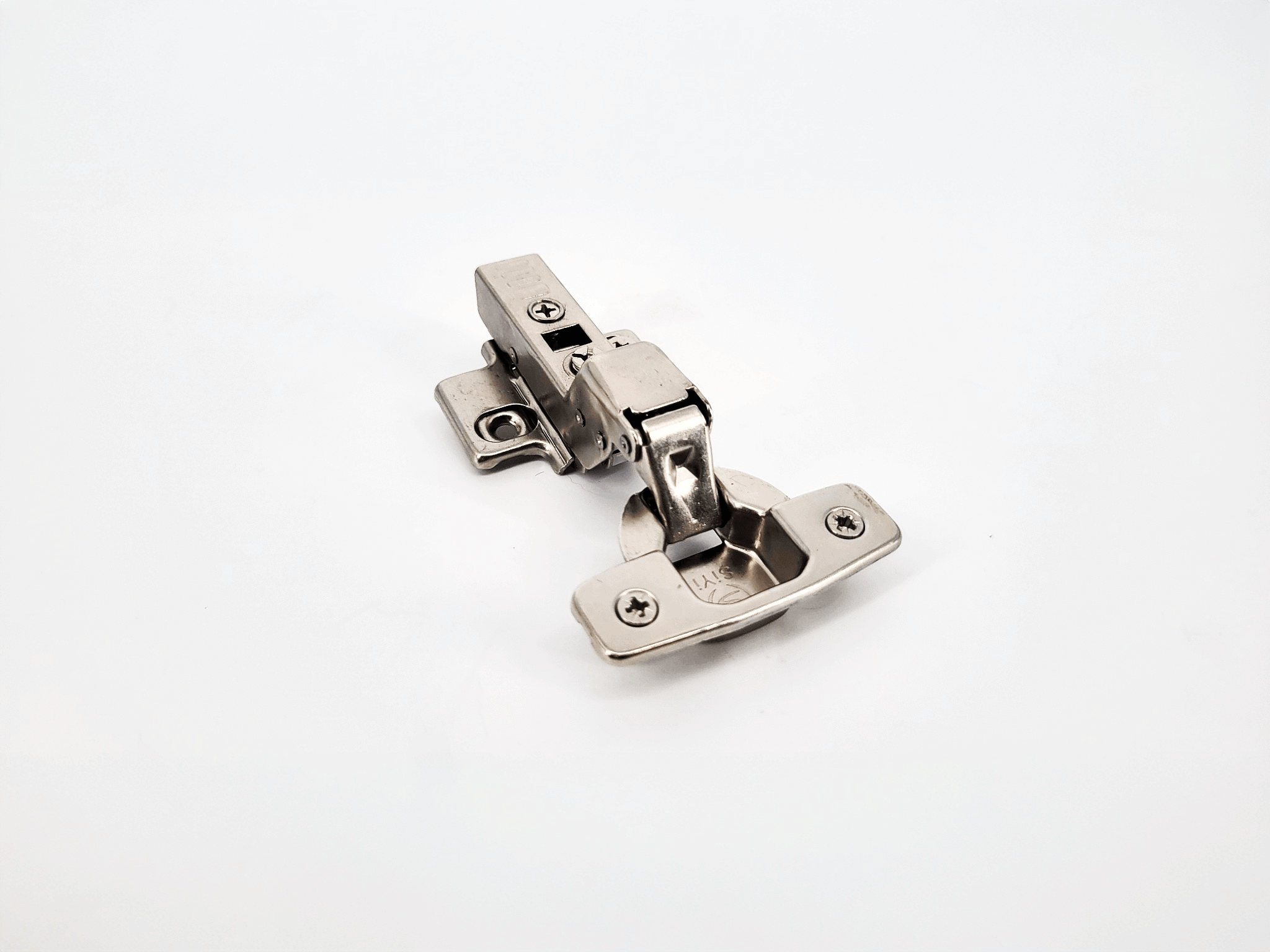

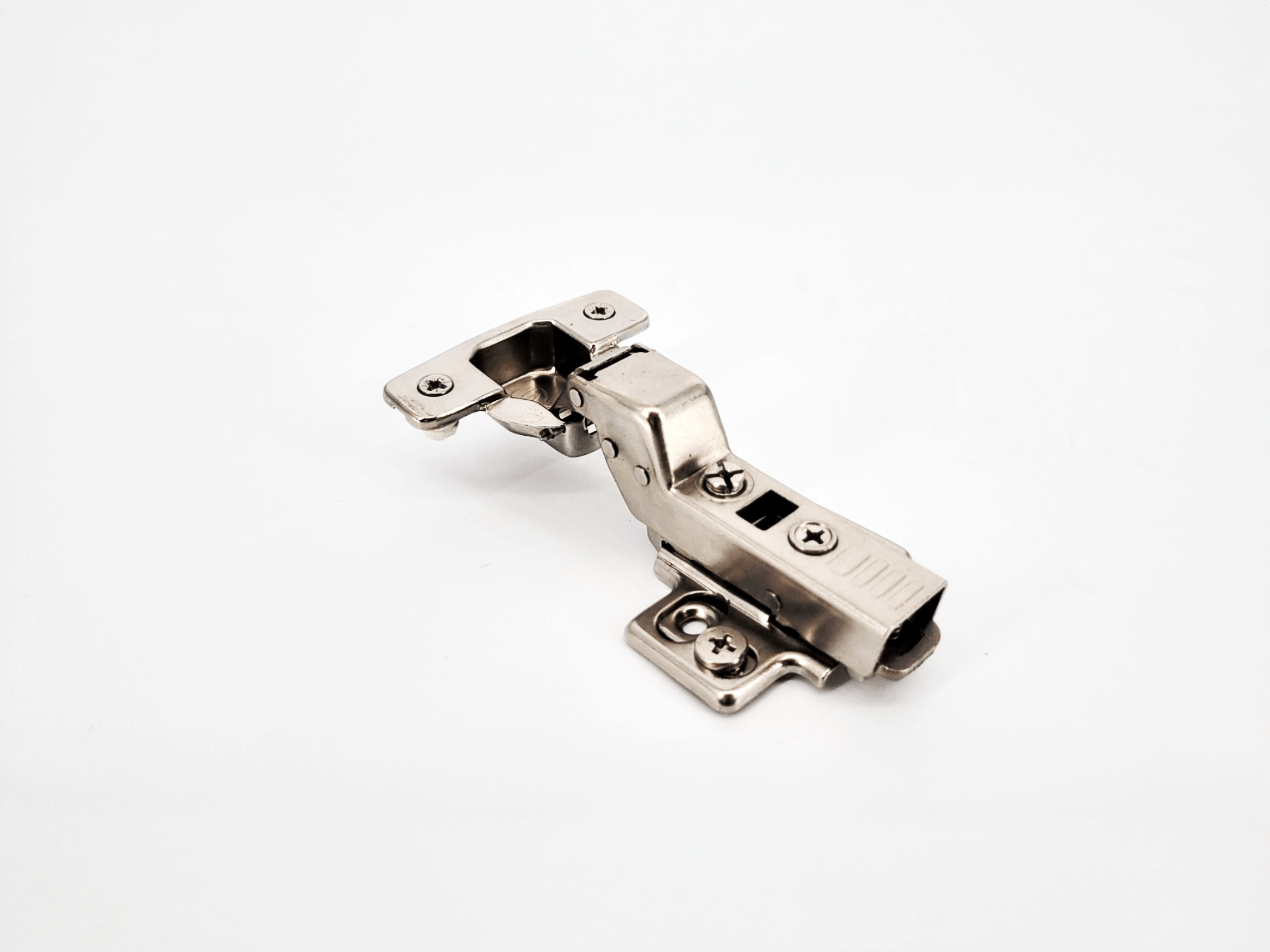

Clip-On Frameless Hinge
These clip-on frameless hinges offer a modern design and a built-in soft-close mechanism, ensuring quiet and gentle door closure.
SKU: SY318
Tested by KCMA, BIFMA, and BHMA for top-tier quality and durability.
WHY SiYi America: As a manufacturer, we deliver precision-engineered cabinet hardware with exceptional quality, reliable supply, and competitive value. We also offer customization options and responsive U.S.-based support to help you get solutions tailored to your exact needs.
- Opening angle: 105
- Closing type: Soft close
- Application: Frameless
- Diameter of hinge cup: 35mm
- Height of hinge cup: 11.5mm
- Boring distance range: 3-7mm
- Distance of cup holes centers: 45mm
- Door thickness: 14-21mm
- Finishing: Nickel plated
- Main material: Cold-rolled steel
- Material thickness: 0.8 – 1.2 – 1.2mm
| Product & Sales Description | SKU |
|---|---|
| Full Overlay, Screw-on (45mm Hole Pitch) | 318-01-45F |
| Half Overlay, Screw-on (45mm Hole Pitch) | 318-01-45H |
| Inset Overlay, Screw-on (45mm Hole Pitch) | 318-01-45IN |
| Full Overlay, With Dowel (45mm Hole Pitch) | 318-02-45F |
| Half Overlay, With Dowel (45mm Hole Pitch) | 318-02-45H |
| Inset Overlay, With Dowel (45mm Hole Pitch) | 318-02-45IN |
