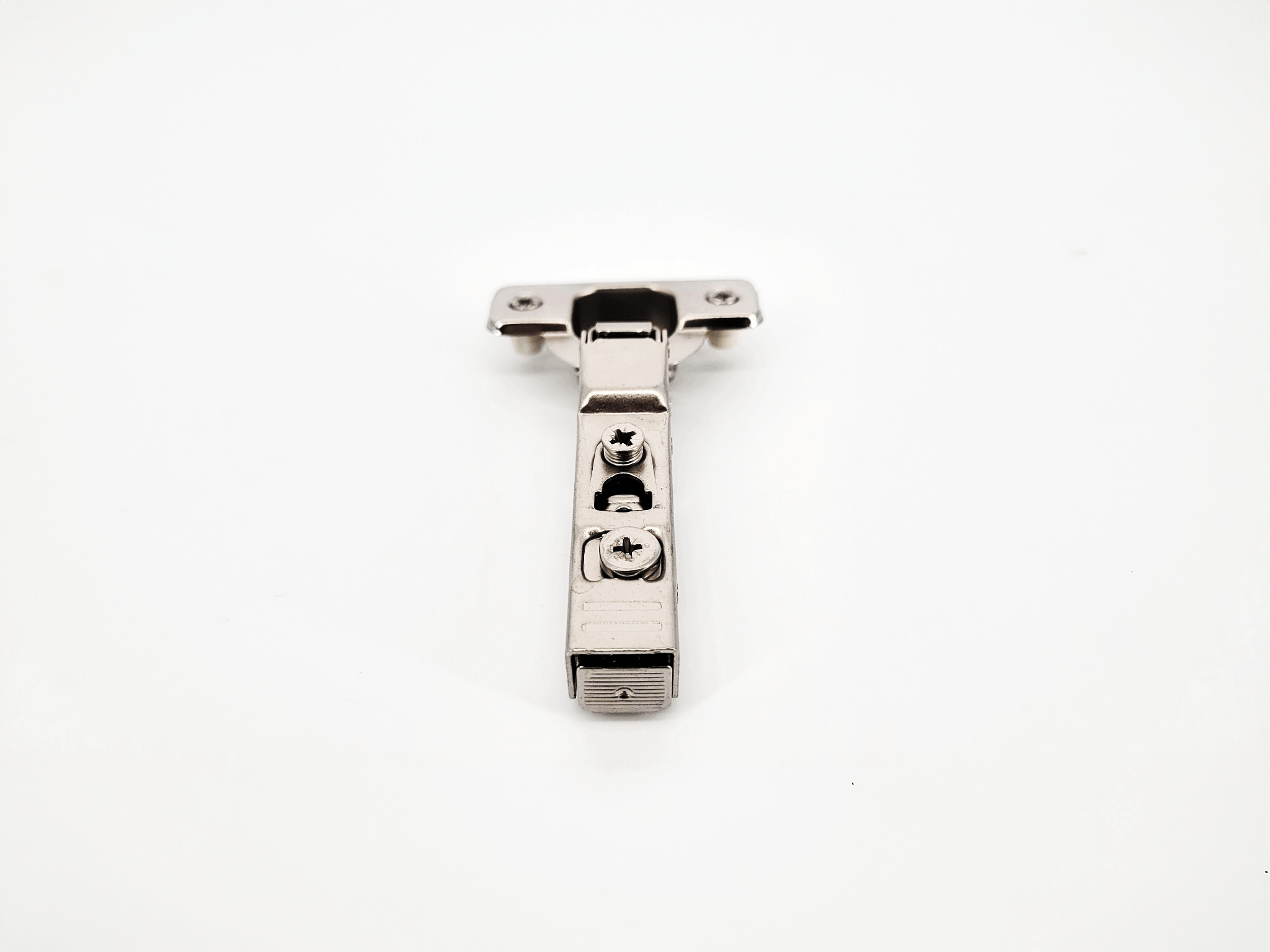

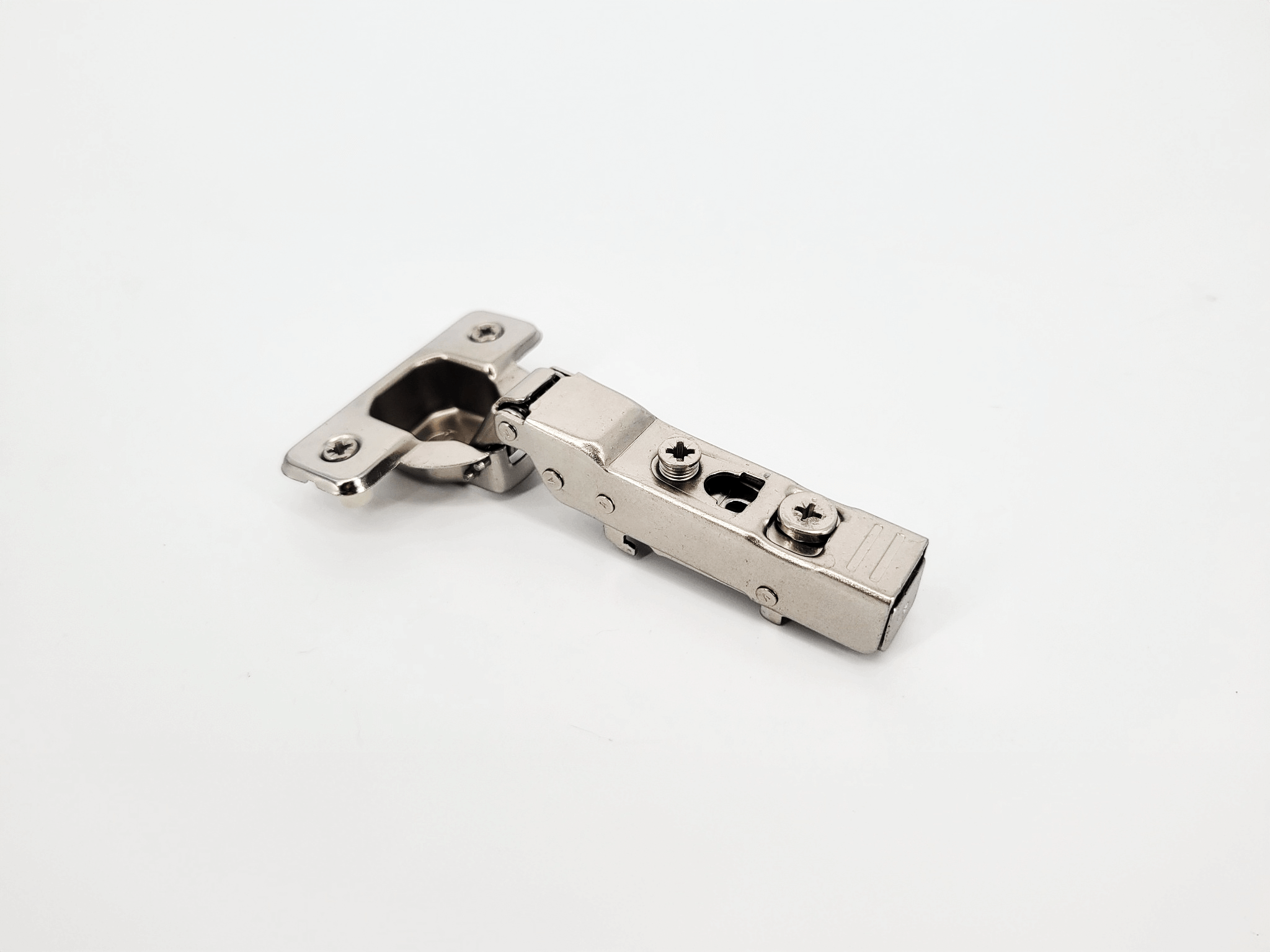

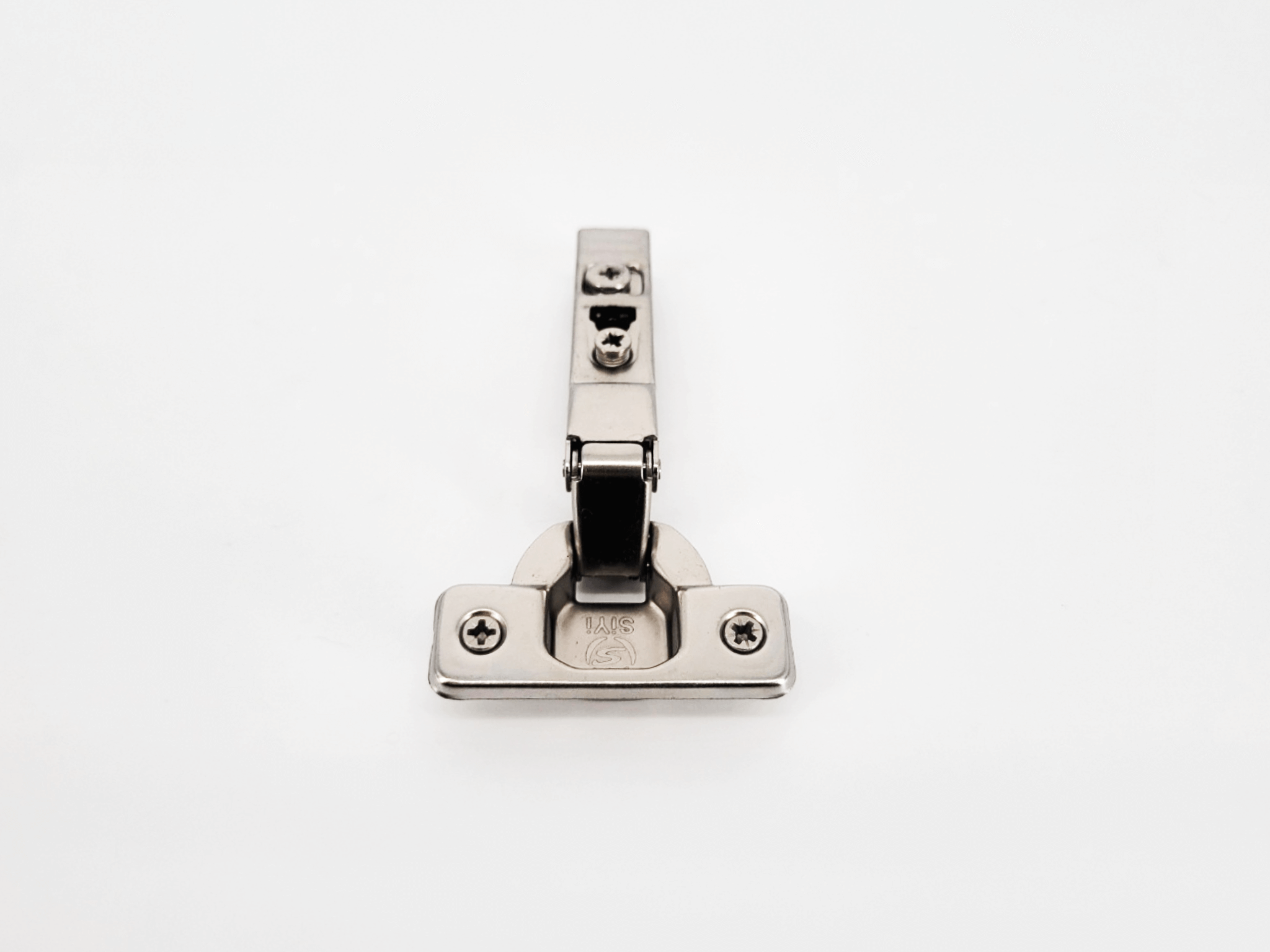

Clip-On Hinge

Designed for face frame or frameless applications. These hinges offer easy alignment and a tool-free clip-on mechanism for quick, secure installation. The integrated soft-close feature prevents slamming, while 3D adjustability ensures a perfect fit every time.

SKU: SY328

Tested by KCMA, BIFMA, and BHMA for top-tier quality and durability.

WHY SiYi America: As a manufacturer, we deliver precision-engineered cabinet hardware with exceptional quality, reliable supply, and competitive value. We also offer customization options and responsive U.S.-based support to help you get solutions tailored to your exact needs.

  • Opening angle: 105
  • Closing type: Soft close
  • Application: Face Frame / Frameless
  • Diameter of hinge cup: 35mm
  • Height of hinge cup: 11.5mm
  • Boring distance range: 3-7mm
  • Distance of cup holes centers: 45mm
  • Door thickness: 14-21mm
  • Finishing: Nickel plated
  • Main material: Cold-rolled steel
  • Material thickness: 0.8 – 1.2 – 1.2mm

Product & Sales DescriptionSKU
Clip-On Hinge, Regular, Full Overlay, Screw On328-1AF
Clip-On Hinge, Regular, Full Overlay, With Dowel328-1BF
Clip-On Hinge Soft Close, Full Overlay, Screw On328-2AF
Clip-On Hinge Soft Close, Half Overlay, Screw On328-2AH
Clip-On Hinge Soft Close, Full Overlay, With Dowel328-2BF
Clip-On Hinge Soft Close, Half Overlay, With Dowel328-2BH
Clip-On Hinge Soft Close, Inset, Screw On328-2AIN
Clip-On Hinge Soft Close, Inset, With Dowel328-2BIN
0 mm Mounting Plate for clip-on Hinge328-00P
3 mm Mounting Plate for clip-on Hinge328-03P
6 mm Mounting Plate for clip-on Hinge328-06P
Face Frame Hinge -Clip On, Cam Adjustable, 0 MM, Plate - Metal328M-00P
Face Frame Hinge -Clip On, Cam Adjustable, 2 MM, Plate - Metal328M-02P
Face Frame Hinge -Clip On, Cam Adjustable, 3 MM, Plate - Metal328M-03P
Frameless Hinge - 328 Series: Clip On, 3D Adj. 0 MM Plate328-EP00
Frameless Hinge - 328 Series: Clip On, 3D Adj. 9 MM Plate328-EP09
Frameless Hinge - 328 Series: Clip On, 3D Adj. 18 MM Plate328-EP18
